H-Smart是独立的自动谐波发生器模块，设计用于Q2和Q2HE系列激光器。模块将与激光器并排安装在普通光学台或面板上。

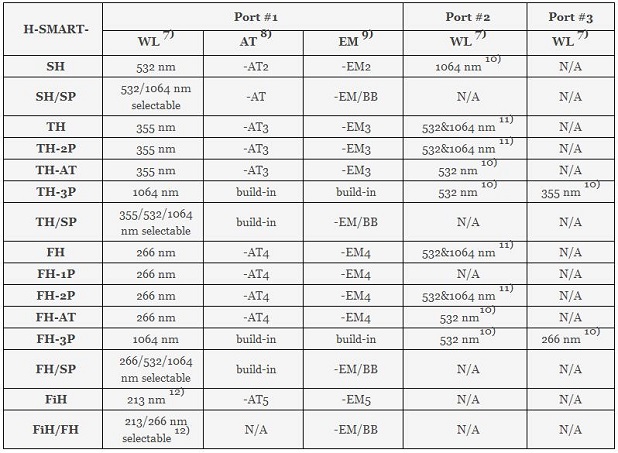

H-Smart可出厂设置三个出口，发射高达5次谐波波长。最常见的出口标准配置列在下表中。可根据用户需求定制配置。

H-SMART flexible design and microprocessor controlled operation enabled us to implement number of advanced features:

Single output port – motorized selection of required wavelength, emitted trough the same exit aperture.

Self-tuning – automatic, microprocessor controlled tuning of non-linear crystal temperatures for maximum pulse energy.

Monitoring – monitoring of pulse energy at fundamental or harmonic wavelength.

Bypass – laser fundamental beam can bypass H-SMART with minimal losses on internal optical components.

Attenuation – ability to attenuate output pulse energies without change of laser pump energy, helping to minimize changes to beam profile and pulse duration.

Enhanced spectral purity– improved to 99.9% spectral purity of exit wavelengths.

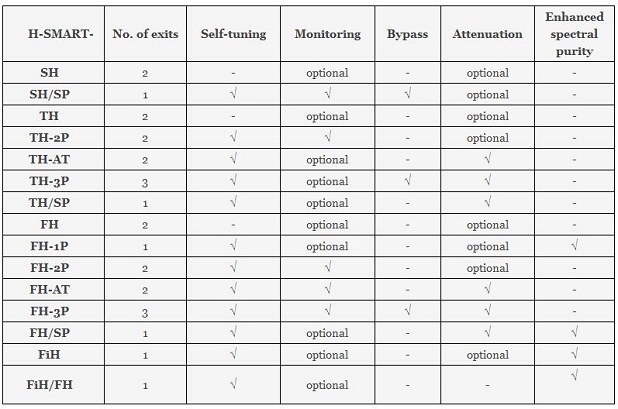

“Features” table below summarizes features of each model and available extensions.
